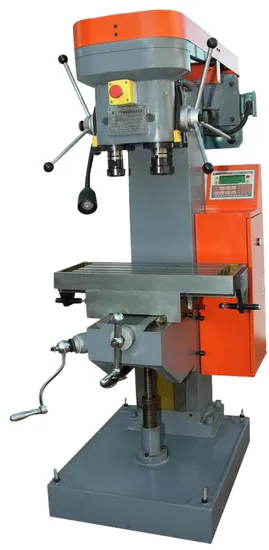

Vertical Drilling Tapping 2 Spindle Manual Hand Drilling Machine

Vertical Drilling Tapping 2 Spindle Manual Hand Drilling Machine

ZSK4150*2--Automatic 3 Axis Drilling Tapping Milling Compound Machine for Thread Fauce I.Equipment description and pictu
Basic Info.
Model NO. ZS4132X2
Precision High Precision
Certification CE
Condition New
Transport Package Wooden Package
Trademark Yueli
Origin China
HS Code 8458912090
Production Capacity 3000PCE/Year
Product Description
ZSK4150*2--Automatic 3 Axis Drilling Tapping Milling Compound Machine for Thread Fauce

I.Equipment description and pictures1.The manual machine tool consists of a base, a column, a lifting table, a middle drag, a worktable, and a spindle unit.2. PLC control program control, friendly human-machine interface dialogue, intuitive programming and easy operation, ordinary people can quickly learn.3.Sliding table double-spindle manual feed unit, Korea imported pneumatic components transmission table. The worktable adopts pneumatic device and hydraulic buffer for positioning, moving and high positioning accuracy. Eliminates the problem of partial tooth failure of old-fashioned equipment.4.The worktable is high-frequency treated, wear-resistant, high-temperature resistant, and equipped with a lubrication system.5.It is used in the processing of valves, plumbing and sanitary ware, door control hardware, fire hydrants, auto parts, etc. It is easy to operate, beautiful in appearance and cost-effective.
II.Technical Parameter
No. SpecificationUnitZS4132 X 2ZS4132X2AZS4132X2B
Parameter name
1Spindle Sleeve DiameterMM86
2Number of cutting spindle axes/2
3
Transfer method
/
Single motor synchronous belt drive
Single motor gear drivePrimary belt drive
4Max drilling hole diameterMM32
5Max tapping diameter MM32
6Spindle taper#NT30
7Spindle spacingMM150
8Distance from spindle end face to work tableMM260-580
9Workbench size MM620*230
10Workbench travel X axisMM160
11Y axis Medium towing travel MM120
12Spindle stroke(drilling/tapping)MM110/110
13Manual/automatic tapping/Manual
14Drilling spindle speedRpm1420/990/619874/1382
15Tapping spindle speedRpm580/410/257575/908
16Drilling motor model no./3kW/4P3kW/4P3kW/4P
17Tapping motor model no./ 3kW/4P
18Total power kW36
19Dimension(LxWxH)MM1200x680x1600
20WeightKG700750
III.Production workshopIV.Certificate

Vertical Drilling Tapping 2 Spindle Manual Hand Drilling Machine


Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on. If you have any interest, pls feel free to contact at any ti
